Formatting Charts produced by the
Nematrian website
[this page | pdf | back links]
In many situations presentation
of results is important. A common way of presenting mathematical or numerical
work is to plot the results in chart form.
The Nematrian charting
algorithms allow the user to adjust some of the presentational characteristics
of the chart using a ChartFormat parameter. The ChartFormat
parameter is a string of the form “xxx=aaa yyy=bbb …” etc., where e.g. xxx is
the sub-parameter being set and aaa is the value to be assigned to it. Where
the value is in the form of a string variable then it needs to be enclosed in
quotes (i.e. as e.g. xxx=“aaa”). A quote sign within such a string should be referred
to by two consecutive quote signs. This is particularly important if the string
contains a space as otherwise the space will be interpreted by the website as
delimiting different sub-parameters.
Valid sub-parameters currently
include the following:
Sub-Parameter
|
What it relates to
|
LegendDocking
|
Indicates where relative to the plot area the legend appears
(default is to the right)
|
Width
|
Width (in pixels) of overall chart (default width is 600)
|
Height
|
Height (in pixels) of overall chart
|
SeriesType0, SeriesType1, …
|
Chart type used for series 0, series 1 etc. Series 0 is the first
series plotted, series 1 is the second etc. (default is usually a line chart)
|
SeriesName0, SeriesName1, …
|
Name ascribed to the series when it is plotted (default is
usually the expression being plotted)
|
SeriesColor0, SeriesColor1, …
|
Colour of line ascribed to the series when it is plotted (default
uses blue for first series, brown for next series etc.)
|
SeriesLineStyle0, SeriesLineStyle1, …
|
Style of line ascribed to the series when it is plotted (the
default is a solid line)
|
xMajorGrid
|
Indicates if major grid lines for x-axis are to be included
(default is false)
|
yMajorGrid
|
Indicates if major grid lines for y-axis are to be included
(default is true)
|
xMinimum
|
Minimum x value (overriding the default selected by website)
|
xMaximum
|
Maximum x value (overriding the default selected by website)
|
yMinimum
|
Minimum y value (overriding the default selected by website)
|
yMaximum
|
Maximum y value (overriding the default selected by website)
|
xLabel
|
Label to describe x axis (default is usually “x”
|
yLabel
|
Label to describe y axis (various defaults depending on function)
|
Sub-parameter names are
not case sensitive.
Examples
The following four charts

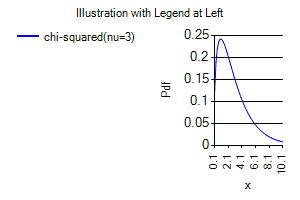

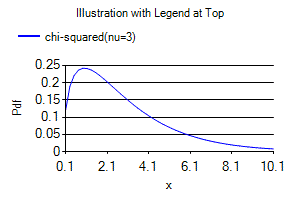

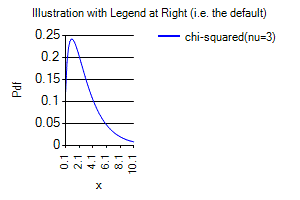

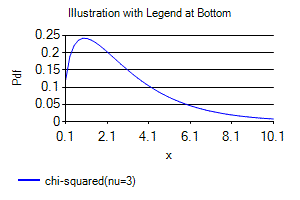

illustrate the use of the LegendDocking sub-parameter. Recognised values are returned
by MnRecognisedChartLegendDockings.
They include Right, Top, Left and Bottom and are not case sensitive.

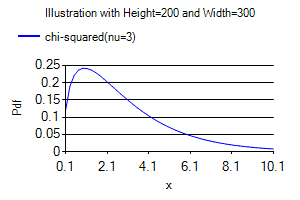

The following two charts
illustrate the use of the Height and Width sub-parameters.

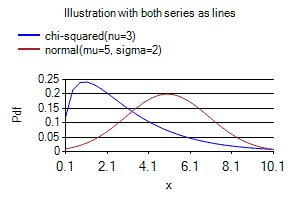

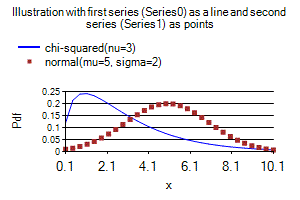

The following two charts illustrate
the use of SeriesType. Recognised values are returned by MnRecognisedChartSeriesTypes.
They include “Line” and “Point” and are not case sensitive. Only some values
returned by MnRecognisedChartSeriesTypes
will be meaningful for a specific type of chart, such the xy plots used
in the charts below.

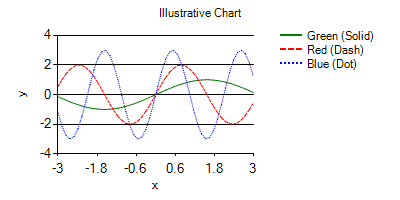

The following chart
illustrates the use of SeriesColor and SeriesLineStyle. Recognised values are
returned by MnRecognisedChartSeriesColors
and MnRecognisedChartSeriesLineStyles.
They include e.g. Black, Blue, Green, Pink, Purple, Red, Yellow (Color) and Solid,
Dash, Dot (LineStyle), and are not case sensitive.
All charts produced by
the Nematrian website are technically also old-style SmartCharts. Sub-parameters
relevant to this aspect of the chart are:
Sub-Parameter
|
What it relates to
|
SmartText
|
Text characterising the appearance of the SmartChart
|
Creator
|
The creator of the SmartChart
|
Comment
|
A comment added by the creator in relation to the chart
|
Referencewebsite
|
A website that is associated with the SmartChart
|
LimitOtherUsers
|
Flag indicating if SmartChart is only
viewable by certain users
|
OtherAllowedUsers
|
A SmartUList indicating which Users can view the SmartChart, if LimitOtherUsers
is set to true
|
The default for each of
these sub-parameters is blank, except for LimitOtherUsers which is
false.
